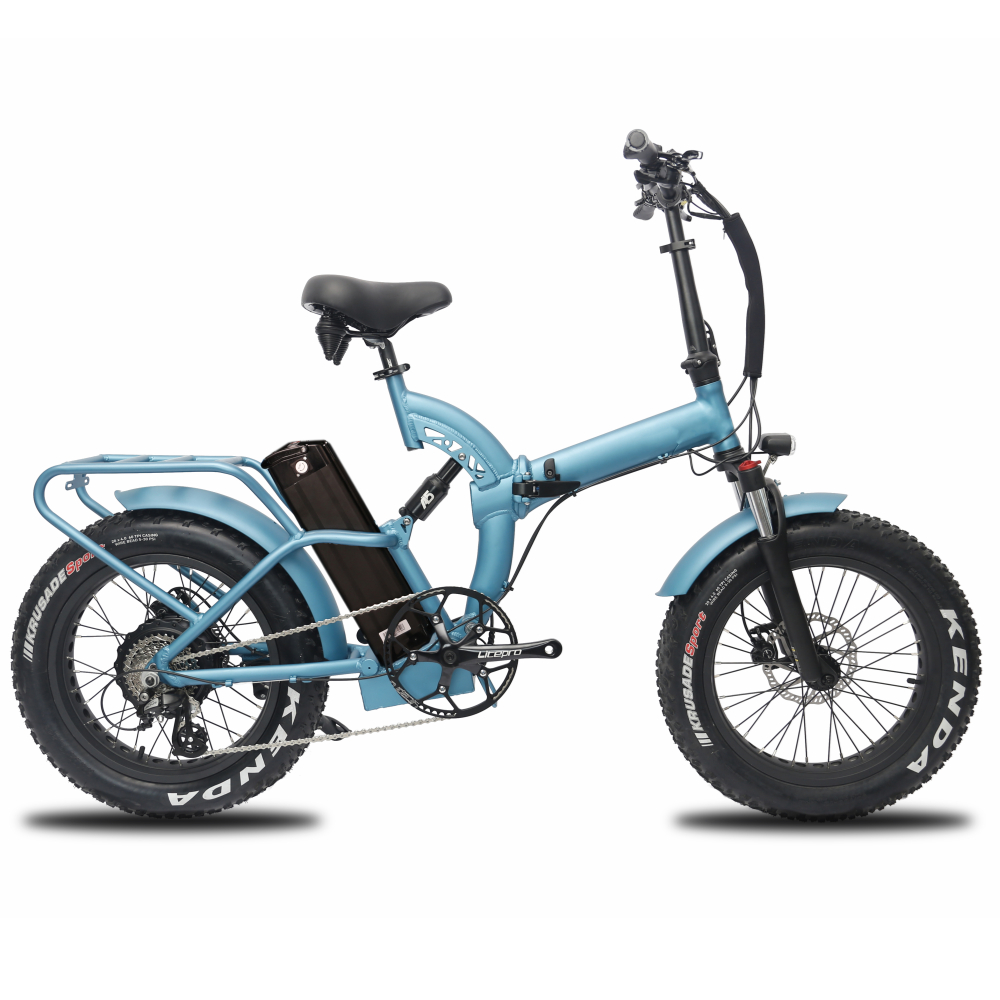

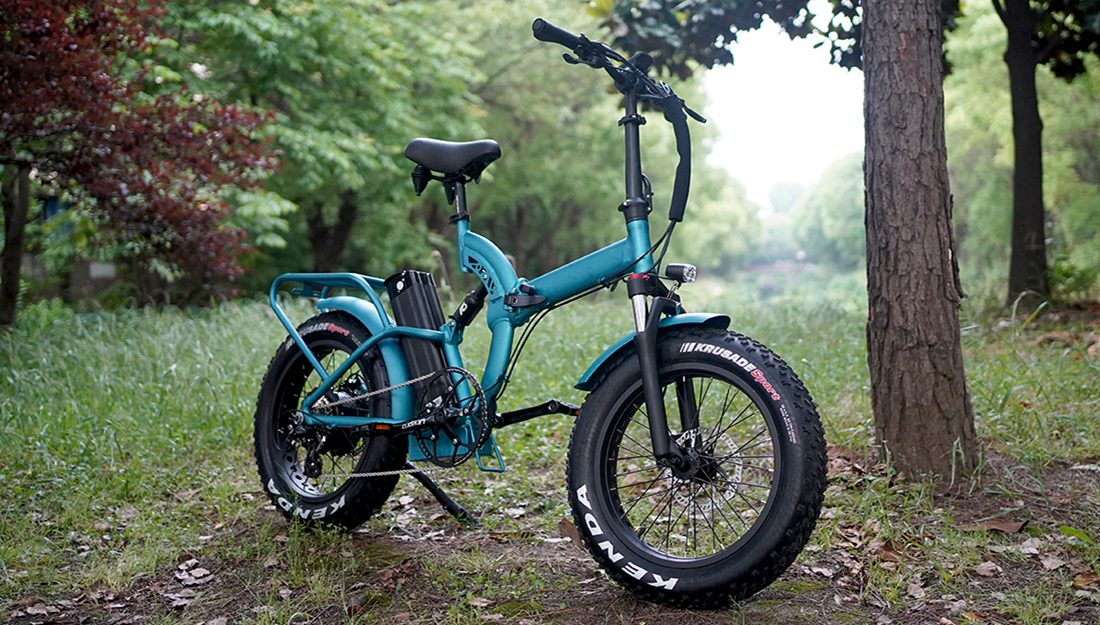

Full Suspension 20 inch Folding Electric Bicycle - HULK M

Size:	20inch
Motor Power:	350W 500W 750W 1000W 1500W
Color:	CUSTOM MADE
Availability:

Quantity:



Inquire Add to Basket

HEADLIGHTS

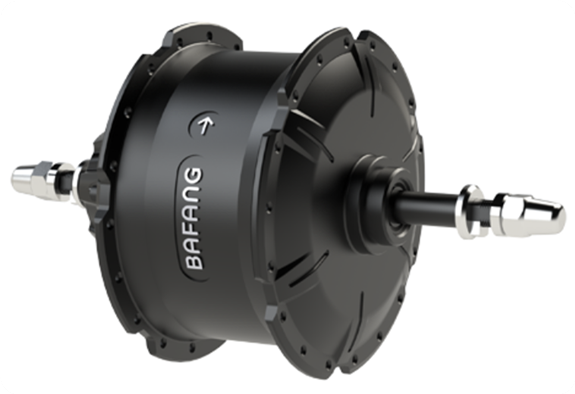

Bafang Brand Rear Drive Motor

- Power options: 350W/ 500W/ 750W/ 1000W/ 1500W

- Motor Voltage: 48V/ 52V

- Waterproof Grade: IP X5

- Noisy: < 50 dB

- Work Temperature: -20° To 45°

- Certifications: ROHS/ CE

Mid LCD Coloful Display

- Function: Bluetooth, USB Port

- Special Function: LOGO Setting

- Pedal Assisted Level: 0-5

- Indicated Information: Battery level/ Assistance Level/ Current Speed/

Average Speed/ Max Speed/ Push-assistance / Total Distance. etc

- Certification: CE/ ROHS

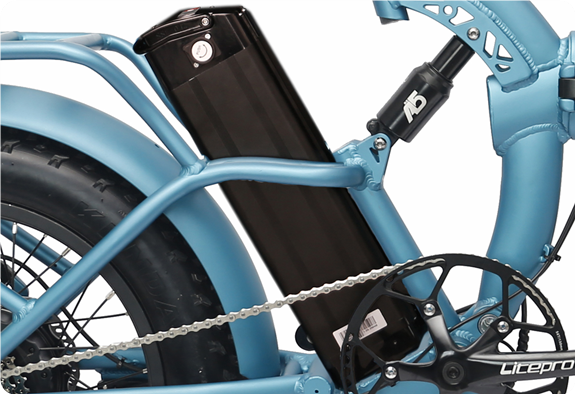

SAMSUNG Lithium Battery

- Battery Capacity: 48V14AH/ 20AH/ 25AH

- Battery Box: waterproof improved model

- Battery Box Color: Black or Silver

- Charger: 48V2A

- Charging Time: 6-10 Hours

- Certification: CE / EN 15194 / REACH / RHOS / UN38.3

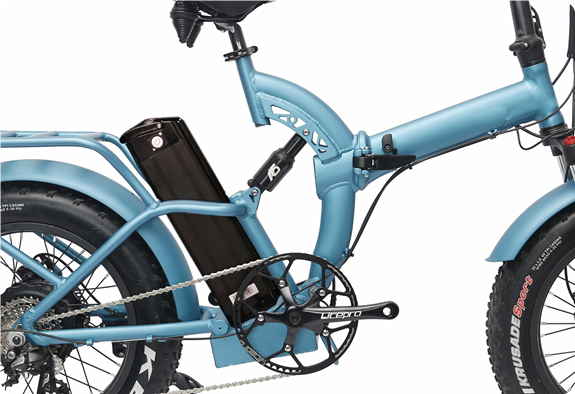

Full Suspension Frame

- Frame Size： 20inch

- Frame Material: Aluminum Alloy

- Upgraded self-locking folder: double insurance, easy operation.

- Controller Box: Special space for the controller at the bottom of frame,

to protect it better from rainning, sunshine and so on.

2nd Generation Controller

- High Waterproof Grade For Controller, Wire & Connection

- Max Current: 35A

- Support 250W - 1500W Motor

- Fixed at the bottom of frame, better protection from crash

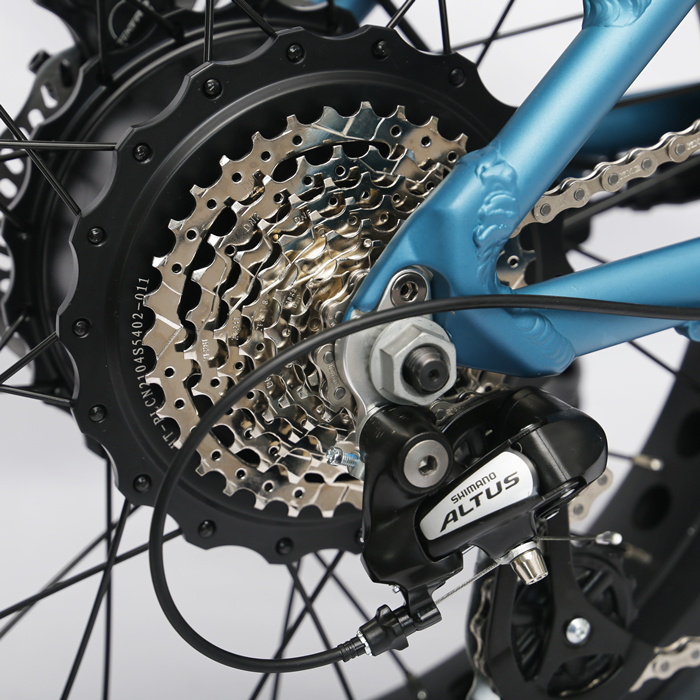

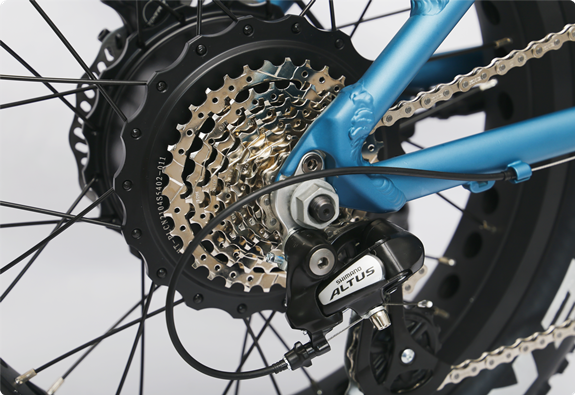

SHIMANO Transmission

- Derailleur: SHIMANO ALTUS 7/8 Speed Rear Derailleur

It has advanced light action with a wide link design offering more precision and

rigidity when shifting. It is typical high-quality Shimano part.

- Shift Lever: SHIMANO 7/8 Speed

- Freewheel: SHIMANO 7/8 Speed

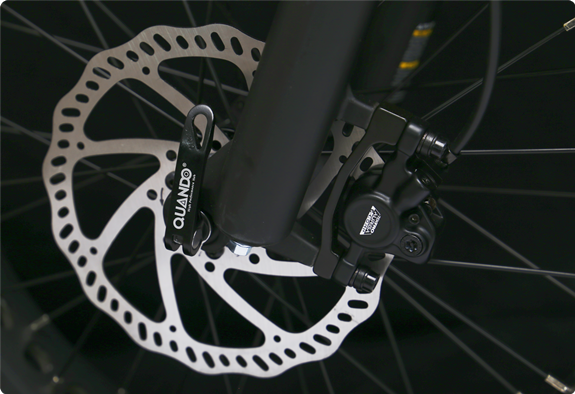

TEKTRO Hydraulic Disc Brake

- Brake: TEKTRO HD-E500 Hydraulic Disc Brake

- Shift Lever: TEKTRO HD-E500

- Disc Brake: TEKTRO, 160/ 180 mm

- Features: open system, dual piston sensor control design easy

installation, adjustment and maintenance.

- Upgrade Option: TEKTRO HD- E725, 4 Pots Brake

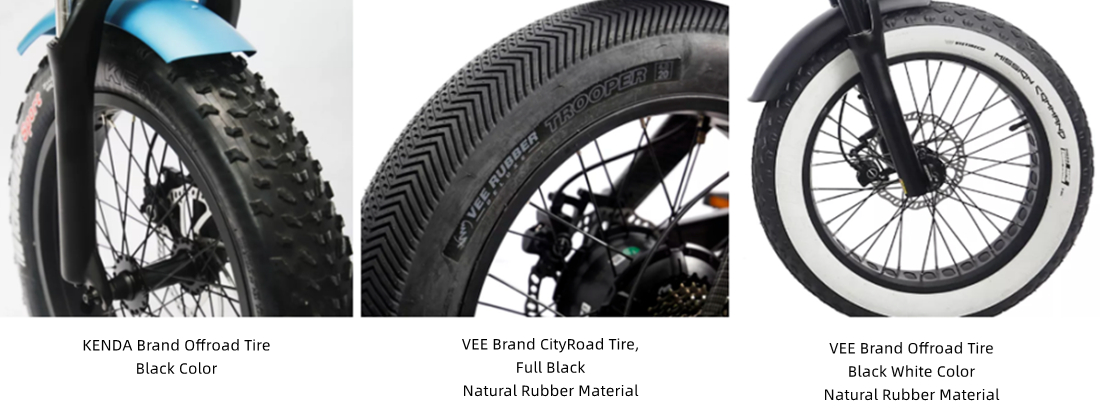

**Tire Size: Front & Rear 20 *4.0 inch; Tire Options:**

未命名_副本

Specifications

	48V500W/ 750W	48V1000W Double Motor	52V1500W
Motor	BAFANG BRAND, 48V500W/ 750W	BAFANG BRAND, Front & Rear 48V500W	HENGTAI Brand, 52V1500W
Battery	SAMSUNG Lithium Battery 48V17.5AH	SAMSUNG Lithium Battery 48V21AH	SAMSUNG Lithium Battery 52V25AH
Controller	2nd Generation Waterproof Controller
Display	Mid LCD Display, KD 716	Mid LCD Color Display, KD 986
Charger	48V2A	48V3A
Sensor	Double Hall Integrated Sensor
Throttle	Thumb Throttle ( can be removed )
Light	Front LED Light & Rear Light
Brake	TEKTRO HD-E350 Hydraulic Disc Brake	TKETRO HD-E500, Hydraulic Disc Brake
Derailleur	SHIMANO ALTUS 7/8/9 Speed

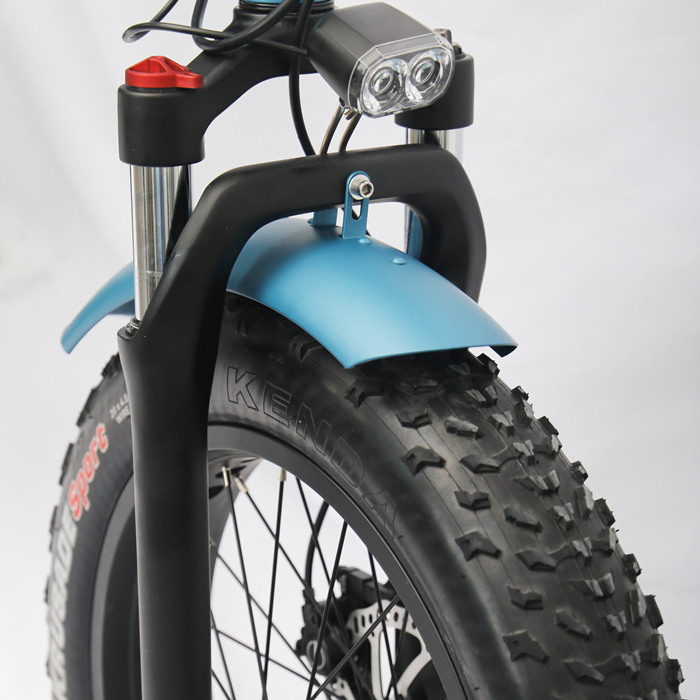

Front Fork	RST Suspension Fork
Rear Shock	BLOOKE, 165mm Eye To Eye
Tire	KENDA, 20*4.0 inch	VEE Brand, Alloy Material

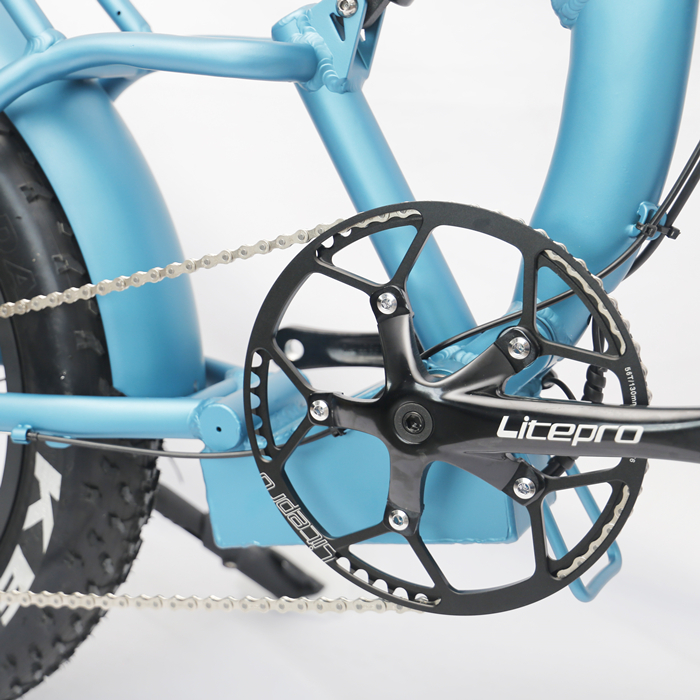

Chainwheel	PROWHEEL, Alloy Material
Seat	SELLE ROYAL
Stem	ZOOM
Stand	Aluminum Alloy Foldable
Fender	Front Short, Rear Long

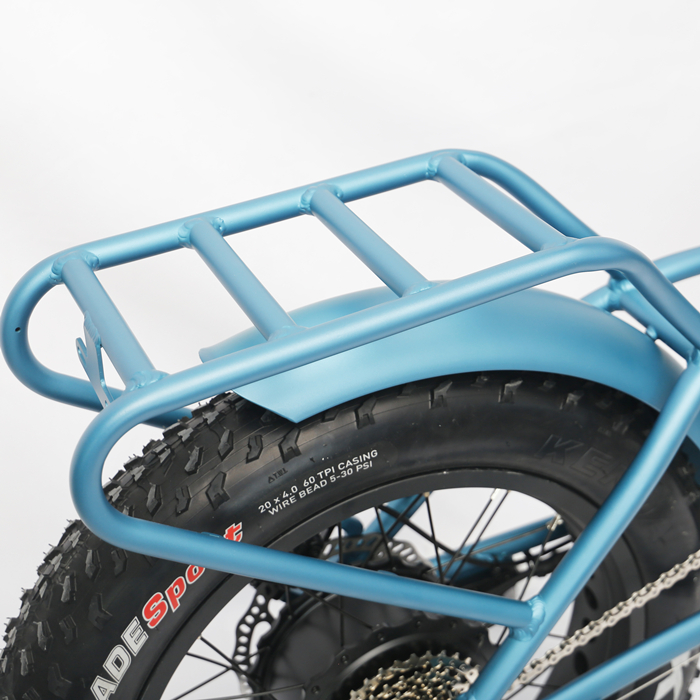

Rear Rack	With
Max Loading	200KGS

FAQ

Q1: What is your MOQ?

- There is no MOQ limit for order quantity. Sample in 1 piece is also acceptable.

Q2:What is your delivery time?

- Delivery date needs to be negociated. Depending on current trade situation and policy, the delivery time needs to be checked for each order. Regularly, it will be 25-35 days.

Q3:How many color options,can we customize color?

- Color custom service is available. The color cards will be sent to you for checking.

Also it is also workable if you have your own color design please.

Q4: What is the delivery term?

- Our factory sets warehouse in US and Italy. Door to door delivery service is available for whole US, Canada and Europe, with custom cleared, tax and anti dump cost paid. Of course, no quatity limit please.

Sea Shipment is also no problem. Our factory has rich experience on trading more than 8 years. CE certification is available as well.

Q5: What about OEM service?

- OEM service is available, it's ok to print your logo on ebike. Except the frame, specifications can be custom made as well.

Q6:What's your payment terms?

- For samples,100% T/T as deposit payment.

For bulk,<20pcs,50% T/T in advance,50% before delivery.

>20pcs 30% T/T in advance,70% before delivery.

The pictures and video of assembled ebike will be sent to clients before shipment or balance payment.

Q7:What's warranty for electric bike?

- 18 months for electronic system, 24 months for mechanical spare parts.

Q8: What certification do you have?

- CE certification for each style is available. Custom clearance in EU is workable.
