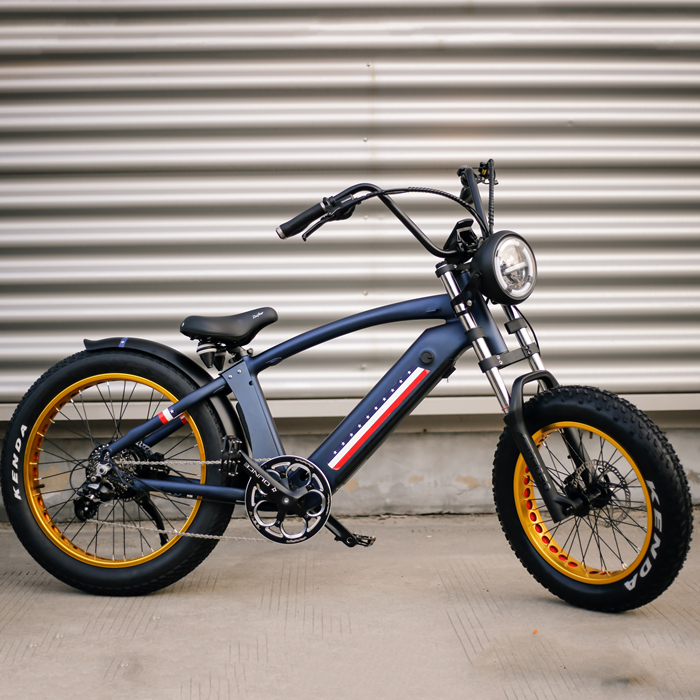

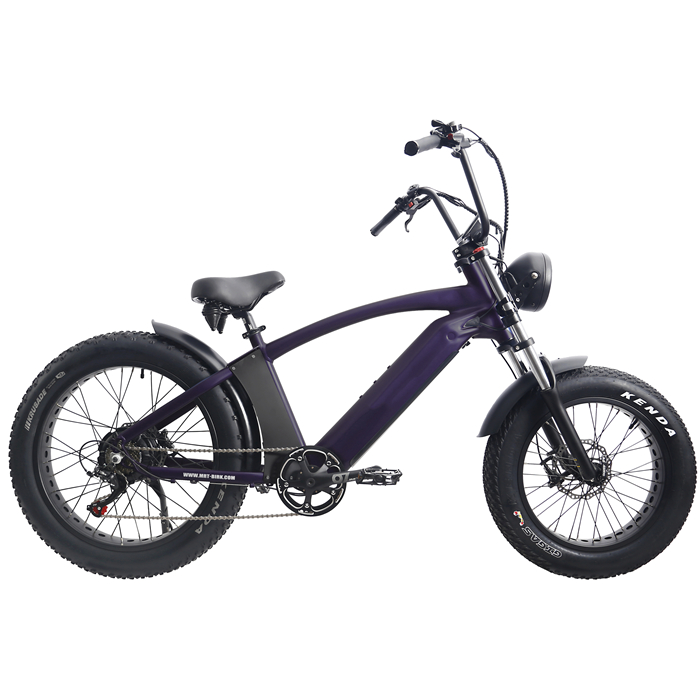

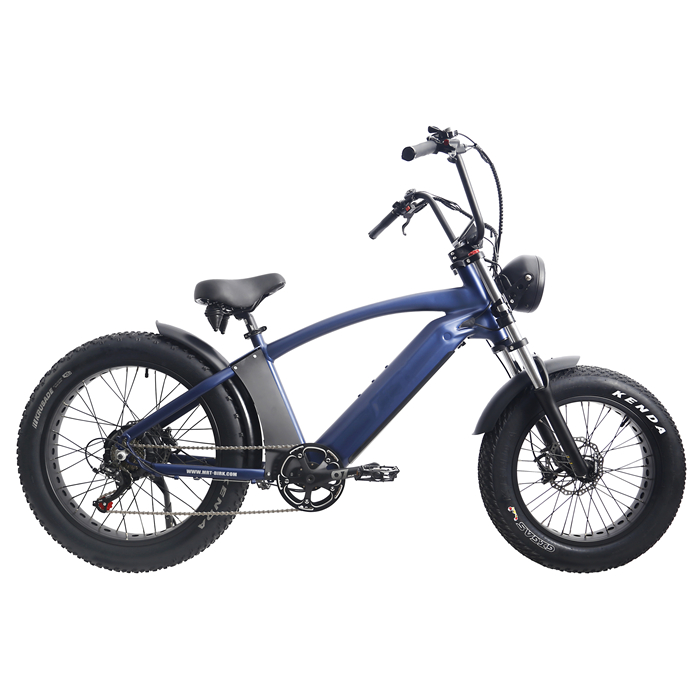

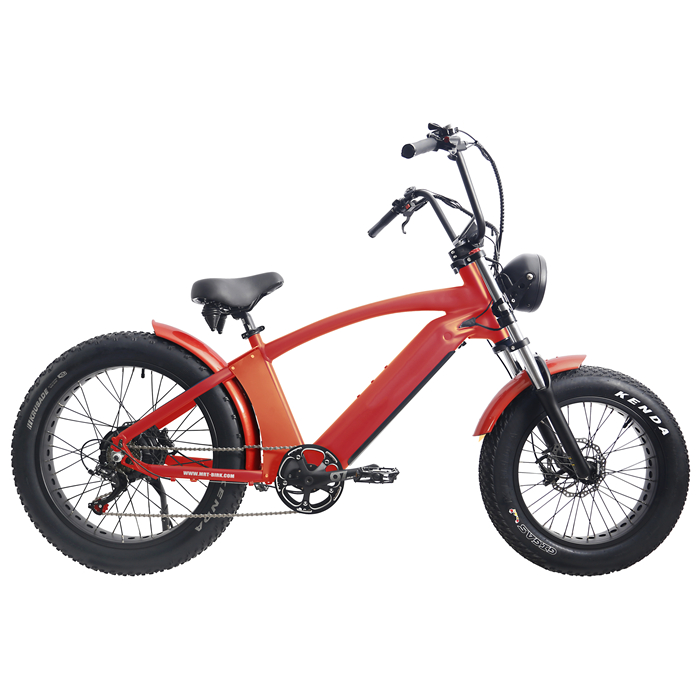

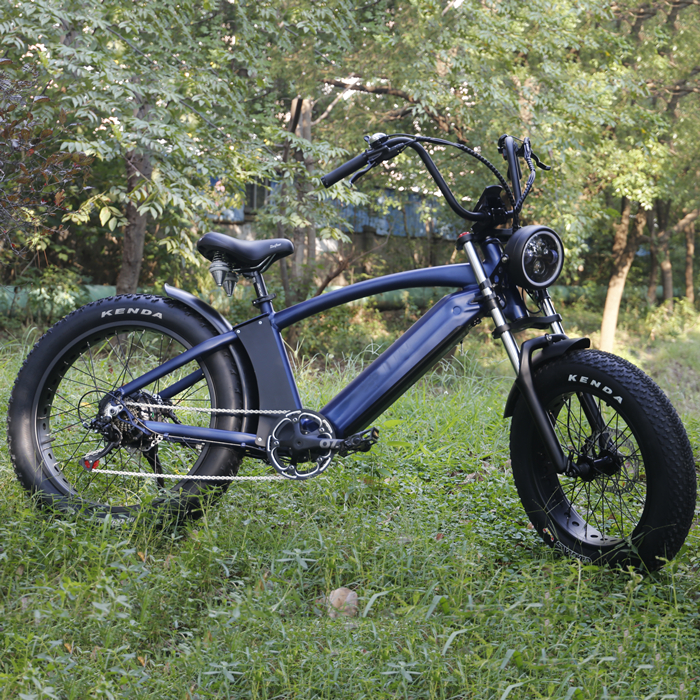

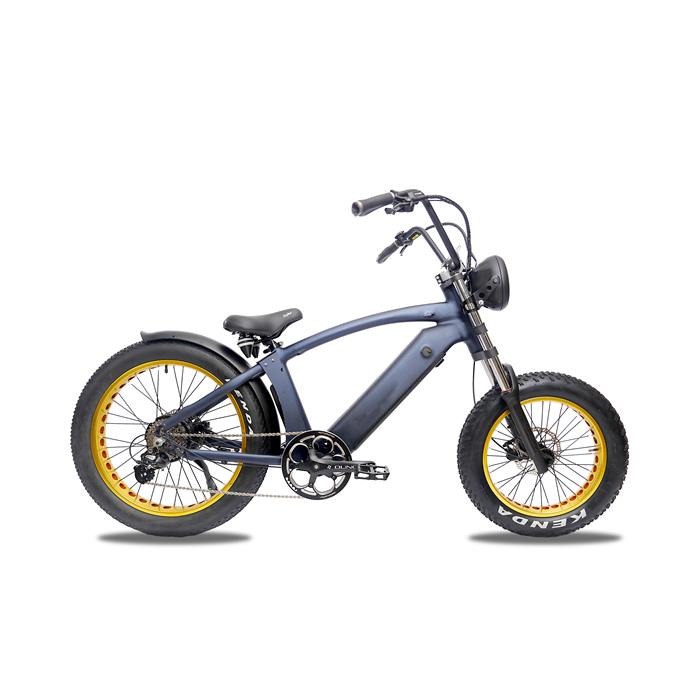

20inch Fat Tire Long Range Electric Chopper Bike - CRUISER S

Size:	20 inch
Motor Power:	350W 500W 750W 1000W
Color:	CUSTOM MADE
Availability:

Quantity:




Inquire Add to Basket

HEADLIGHTS

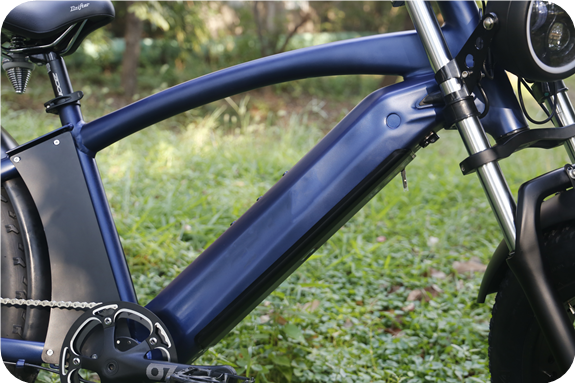

Hidden Battery Design

The battery is hidden in the down tube, which makes a simple

apperance and protect the battery from rain.

Another side, the battery box can be easily removed out for

charging as well.

Dual Shoulder Suspension Fork

Instead of regular style, we choose dual shoulder suspension fork

for this ebike. With longer travel length, it offers a better shock

absorption affect.

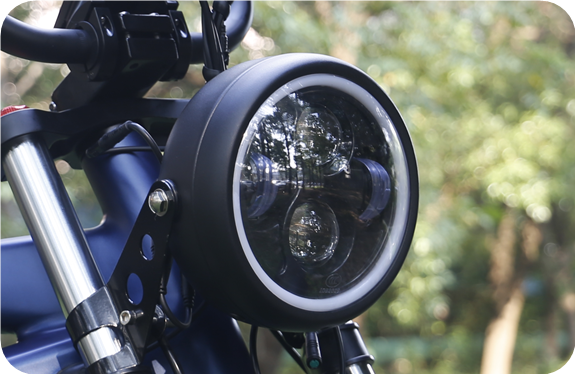

Super Big Front LED Light

The front LED light, is motorcycle style. Super big and bright.

There are 3 levels to adjust its light intensity, for different ride

enviroment.

With the design for lgith and front fork, it makes this product

to be vintage electric bicycle style.

详情4

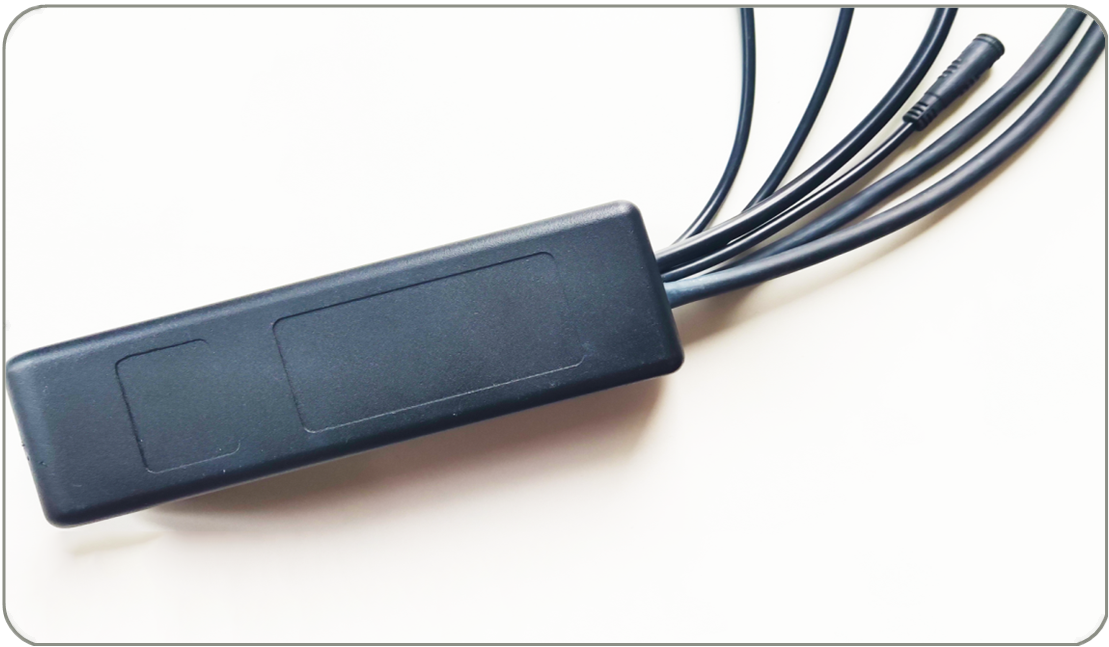

2nd Generation Waterproof Controller

Max current: 30A

With waterproof proction, ebike can be ridden in rainy days as well.

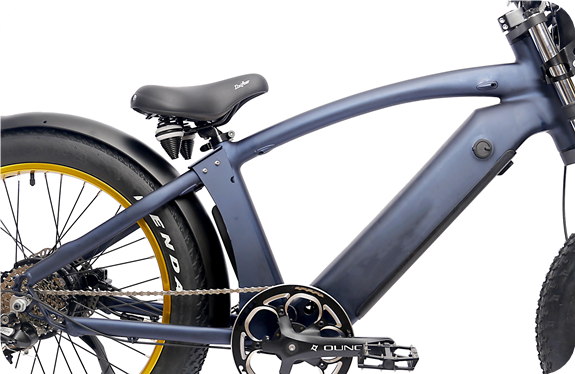

Frame Information

Size: 26 inch

Material: Aluminum Alloy

All wire and cables are interal routed.

Detailed Pictures

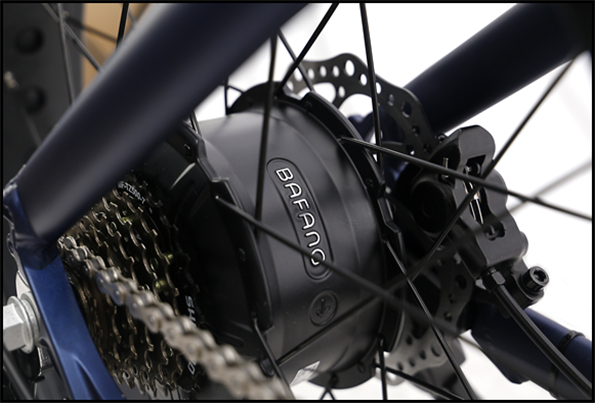

Motor:

- Style: Brushless Rear Drive Motor

- Brand: BAFANG

- Power: 48V350W/ 500W/ 750W/ 1000W

- Operation Temperature: -20° to 45°

- Noisy Grade: <55 dB

- Certification: CE/ EN 14766/ ROHS

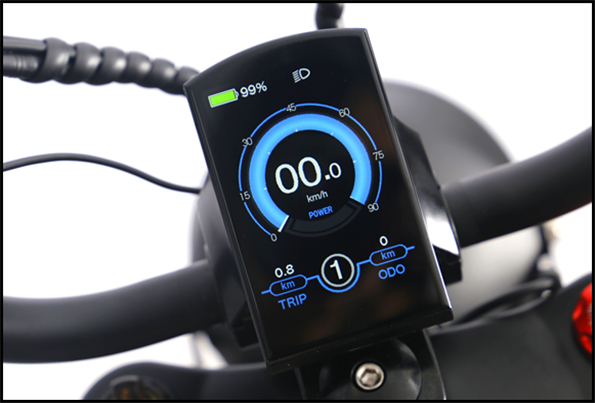

Display:

- Style: Color LCD Display

- Regular Function: Bluetooth, USB Port

- Special Function: LOGO Presented While Display Taking On

- Pedal Assisted Level: 0-5

- Indicated Information: Battery Level/ Assistance Level/

Current Speed/ Average Speed/ Max Speed/ Push-assistance

/ Total Distance. etc

- Certification: CE/ ROHS

Battery:

- Battery Capacity: 48V17.5Ah, Lithium Battery

- Range per power(Trip Distance) : 50km (use throttle)

- Range per power(Trip Distance) : 80km (use pedal assist)

- Certification: MSDS Report

Transmission Group:

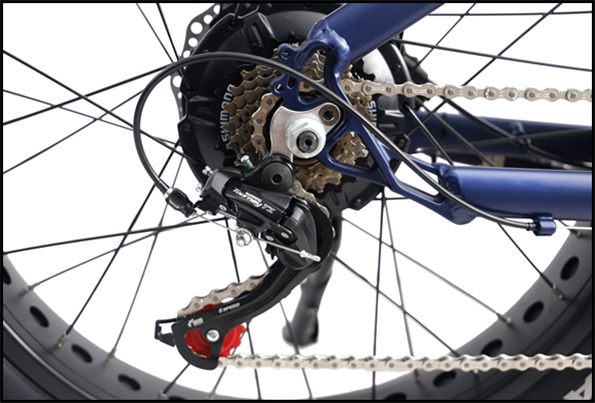

- Derailleur: SHIMANO 7/8 Speed Rear Derailleur

It has advanced light action with a wide link design offering more

precision and rigidity when shifting. It is typical high-quality

Shimano part.
- Shift Lever: SHIMANO 7/8 Speed

- Freewheel: SHIMANO 7/8 Speed

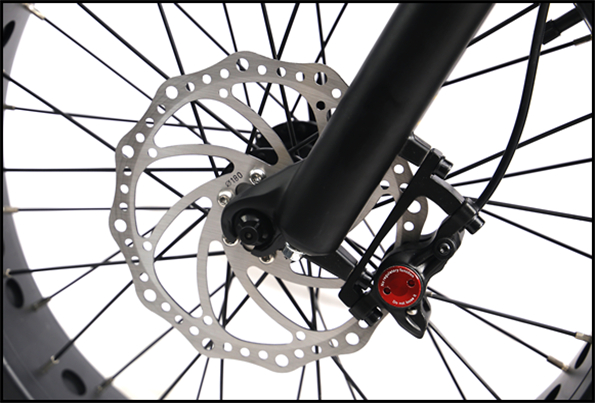

Brake System:

- Brake Lever: ZOOM Mechanical Disc Brake

- Brake Pad: ZOOM, 160/ 180 mm

- Options: TEKTRO Hydraulic Disc Brake/ SHIMANO 4 Pots Brake

- Features:

open system, dual piston

sensor control design

easy installation, adjustment and maintenance

Tire:

- Brand: VEE

- Size: Front & Rear 20*4.0 inch

- Type: City Road Tire

( Mountain / Sand/ Snow Road Tires are available)

- Color: Black/ Black White

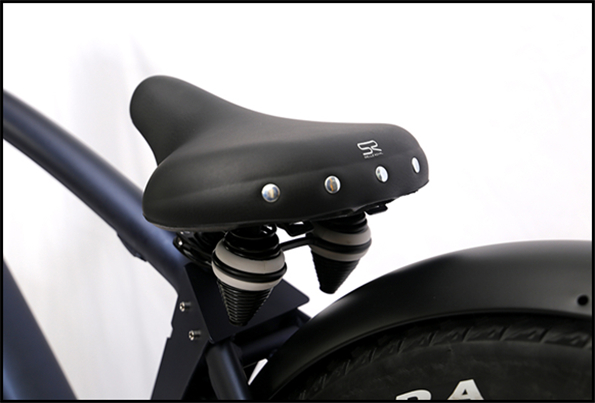

Seat: SELLE ROYAL

This is one of most durable saddles with its special Strengtex material

that guards against wear and abrasions. Large size and thus suitable

for the Relaxed riding position, the Drifter is equipped with a double

spring system to absorb shocks for added comfort.

Specifications

	ECO Model	Advance Model
Motor Power	AKM Brand Rear Drive Brushless Motor 48V350W/ 500W	Bafang Brand Rear Drive Brushless Motor 48V 500W/ 1000W
Battery	Lithium Battery 48V14AH	LG Lithium Battery 48V17.5AH
Display	KD286 Color LCD Display	KD986 Color LCD Display
Front Light	LED Light	Motorcycle Style Super Big LED Light
Controller	2nd Generation Waterproof Controller	2nd Generation Waterproof Controller
Charger	48V2A	48V2A
Charging Time	5-6 hours	5-6 hours
Range Per Power	30-40 KM	55-65 KM
Brake	ZOOM Mechanical Disc Brake	Tektro Hydraulic Disc Brake
Frame Material	Aluminum Alloy	Aluminum Alloy
Frame Size	20 inch	26 inch
Frame Color	Custom Made	Custom Made
Tire	KENDA, Front 204.0inch, Rear 244.0inch	KENDA, Front 204.0inch, Rear 244.0inch
Rim	Aluminum Alloy	Aluminum Alloy
Seat	Big Size Seat	SELLE ROYAL Shock Absorber Seat
Grip	Stardand Black Grip	PROPALM Leather Grip
Pedal	WELLGO	WELLGO
Derailleur	Shimano Tourney 7 Speeds	Shimano Altus 8 Speeds
Suspension	MOZO Suspension Fork	DNM Double Shoulder Air Suspension
Package	Special Carton For Sea Shipment	Special Carton For Sea Shipment
Certification	CE and EN15194	CE and EN15194
Warranty	18 months for electronic parts, 24 months for mechanical parts	18 months for electronic parts, 24 months for mechanical parts

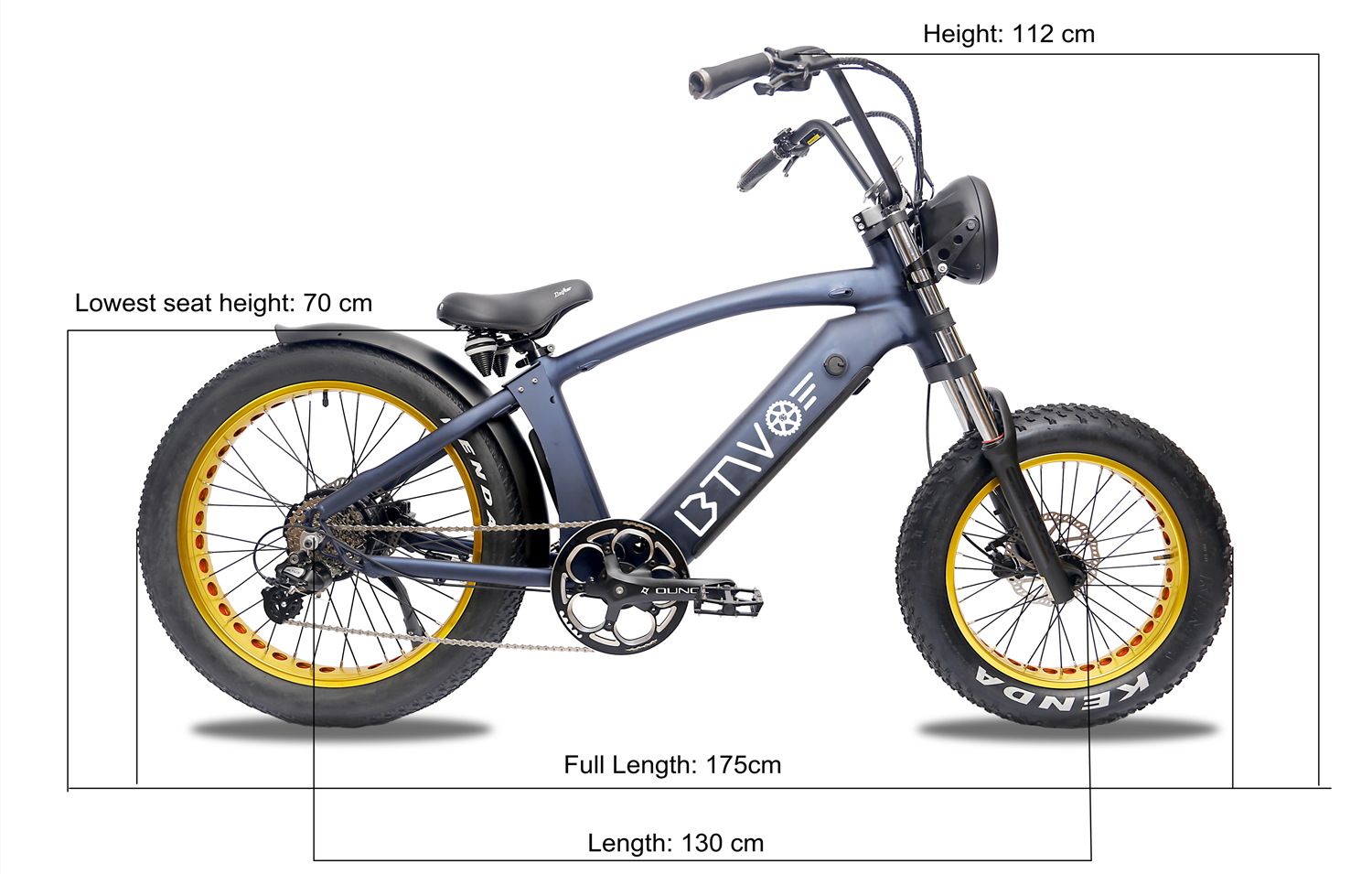

HALEY MEASUREMENT

FAQ

Q1: What is your MOQ?

- There is no MOQ limit for order quantity. Sample in 1 piece is also acceptable.

Q2:What is your delivery time?

- Delivery date needs to be negociated. Depending on current trade situation and policy, the delivery time needs to be checked for each order. Regularly, it will be 25-35 days.

Q3:How many color options,can we customize color?

- Color custom service is available. The color cards will be sent to you for checking.

Also it is also workable if you have your own color design please.

Q4: What is the delivery term?

- Our factory sets warehouse in US and Italy. Door to door delivery service is available for whole US, Canada and Europe, with custom cleared, tax and anti dump cost paid. Of course, no quatity limit please.

Sea Shipment is also no problem. Our factory has rich experience on trading more than 8 years. CE certification is available as well.

Q5: What about OEM service?

- OEM service is available, it's ok to print your logo on ebike. Except the frame, specifications can be custom made as well.

Q6:What's your payment terms?

- For samples,100% T/T as deposit payment.

For bulk,<20pcs,50% T/T in advance,50% before delivery.

>20pcs 30% T/T in advance,70% before delivery.

The pictures and video of assembled ebike will be sent to clients before shipment or balance payment.

Q7:What's warranty for electric bike?

- 18 months for electronic system, 24 months for mechanical spare parts.

Q8: What certification do you have?

- CE certification for each style is available. Custom clearance in EU is workable.
